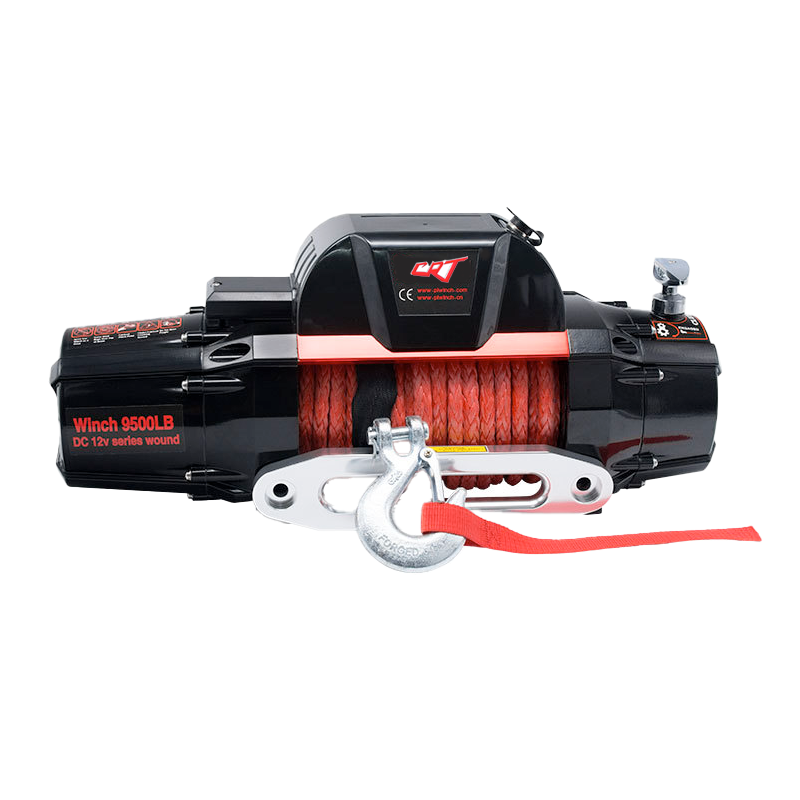

9500 lbs Winch

Built for power and reliability, the 9,500 lbs Winch is designed to tackle the most demanding recovery tasks. Whether you’re navigating challenging terrain or rescuing a stranded vehicle, this winch delivers unmatched performance and durability.

With a rated line pull of 9,500 lbs (4,310 kg) in a single line, it’s equipped with a 5.9HP/4.3KW series wound motor available in 12V or 24V configurations. The 3-stage planetary gear system ensures smooth and efficient operation, with gear ratio options of 216:1 or 150:1 to suit your recovery needs. The winch also features a 180° rotating clutch, enabling quick and easy engagement.

Specifications:
Rated Line Pull: 9,500 lbs (4,310 kg) single line
Motor: 5.9HP/4.3KW, 12V or 24V series wound
Gear System: 3-stage planetary
Gear Ratios: 216:1 or 150:1
Clutch: 180° rotating for easy operation
Rope: 9.5mm diameter, 27m length
Drum Dimensions: 64mm x 224mm
Winch Dimensions: 557mm x 165mm x 240mm (L x W x H)
Weight: 30kg
Fairlead: Aluminum fairlead for smooth rope guidance
Mounting Bolt Pattern: 254mm x 114mm
Packaging: 1 set per box, durable honeycomb carton
