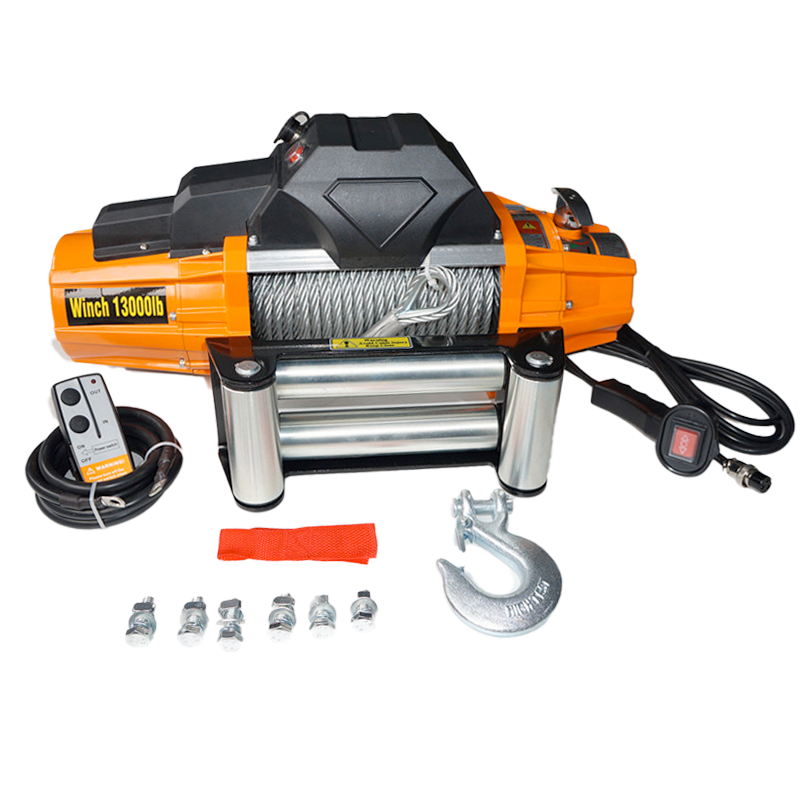

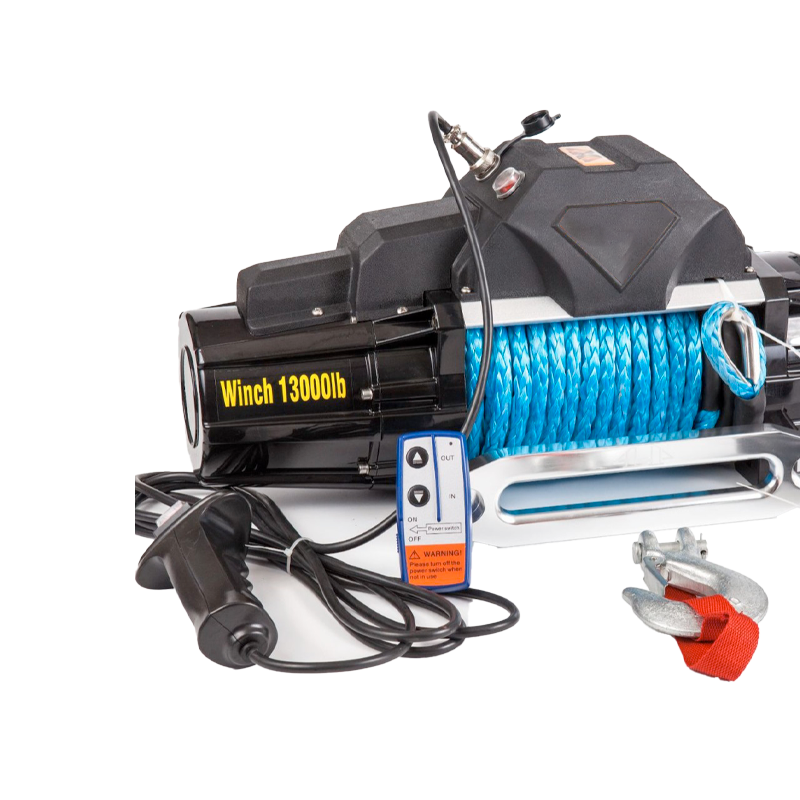

13,000 lbs Winch

For serious off-road enthusiasts and recovery professionals, the 13,000 lbs Winch delivers unmatched power and reliability.

With a rated line pull of 13,000 lbs (5,897 kg) in a single-line setup, the winch is powered by a high-performance 6.6HP/4.85KW series wound motor available in 12V and 24V configurations. The 3-stage planetary gear system ensures efficient and smooth operation, with a gear ratio of 217:1 for optimal power transfer. The 180° rotating clutch offers quick and easy engagement during critical recovery situations.

Specifications:
Rated Line Pull: 13,000 lbs (5,897 kg) single line
Motor: 6.6HP/4.85KW series wound, 12V or 24V
Gear System: 3-stage planetary for smooth recovery operations
Gear Ratio: 217:1
Clutch: 180° rotating for easy engagement
Rope Type: Steel cable
Rope Specifications: 9.5mm diameter, 26m length (customizable)
Drum Dimensions: 63.5mm x 224mm
Winch Dimensions: 546mm x 166mm x 246mm (L x W x H)
Weight: 39kg
Fairlead: Cast steel roller fairlead for enhanced durability and smooth operation
Packaging: Carton and pallet packaging (600mm x 310mm x 290mm)
