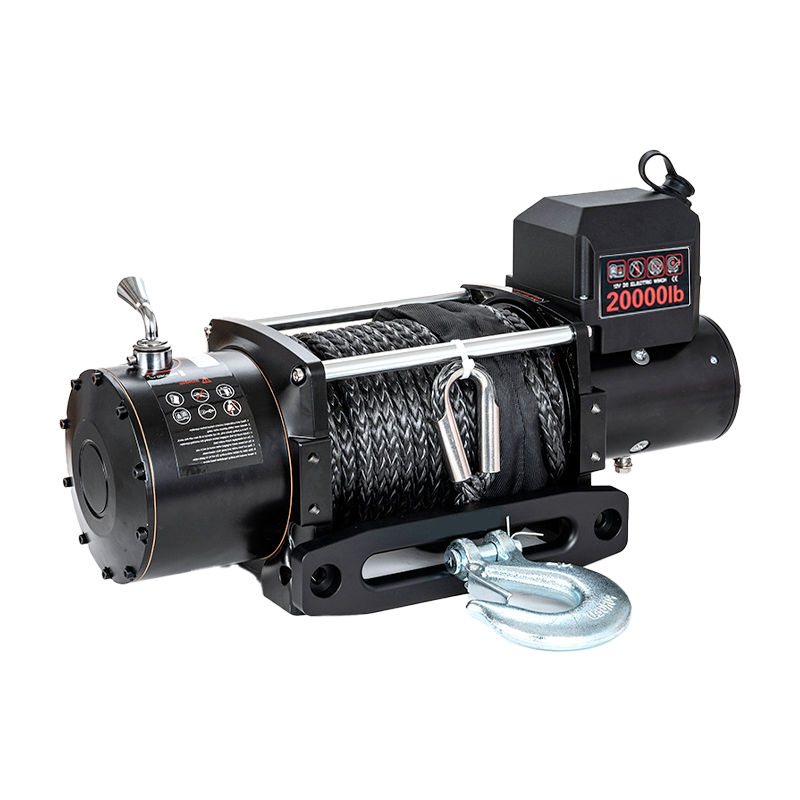

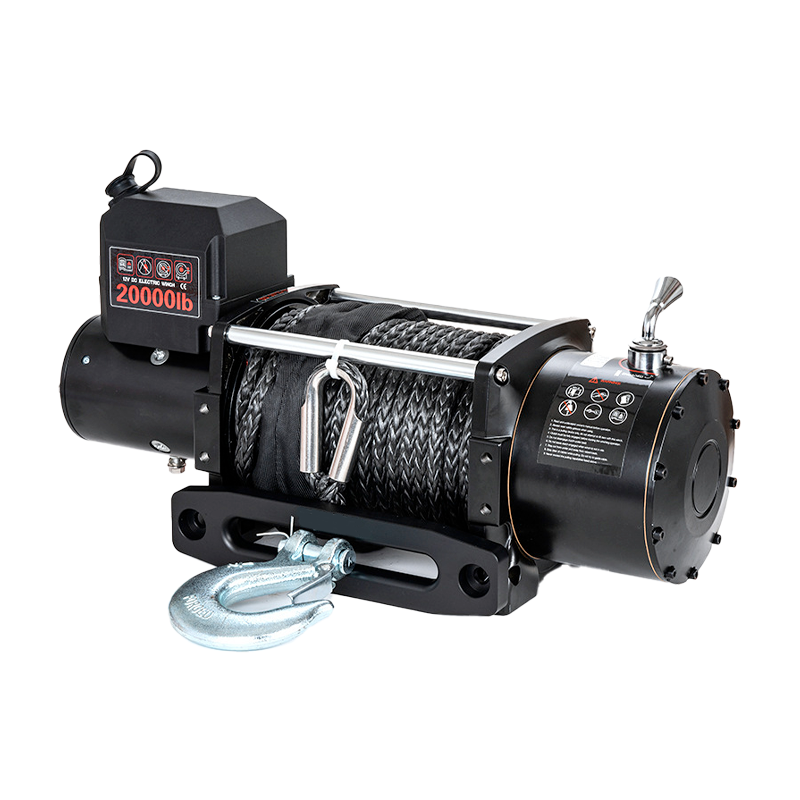

20000 lbs Winch

When you need maximum strength and reliability for the toughest recovery jobs, the 20,000 lbs Heavy-Duty Waterproof Winch is the ideal solution. Engineered for extreme demands, this winch combines unmatched pulling power with rugged durability, ensuring peak performance in the harshest conditions.

Specifications:
Rated Line Pull: 20,000 lbs (9,071 kg) single-line
Motor: 12V DC waterproof series wound, 7.9HP
Gear System: 4-stage planetary transmission
Gear Ratio: 544:1 for optimal power and efficiency
Brake: Automatic, 100% load-holding capacity
Clutch: 90° rotational engagement for ease of use
Electrical Control: Sealed 500A contactor for reliable operation
Control Options: Includes a wired 3-pin 12 ft (3.7m) controller and wireless remote
Rope Options:
Synthetic Rope: 12mm x 28m
Steel Cable: 12mm x 28m
Fairlead: Hawse (synthetic rope) or Roller (steel cable)
Additional Specifications:
Recommended Battery: Minimum 650 CCA for optimal performance
Battery Leads: 25mm², 6 ft (1.83m) length
Winch Dimensions: 24.3” x 7.7” x 10.2” (618mm x 196mm x 260mm)
Mounting Bolt Pattern: 10” x 4.5” (254mm x 114.3mm)
Shipping Information:
Winch Weight:
Synthetic Rope Model: 119 lbs (54 kg)
Steel Cable Model: 136.7 lbs (62 kg)
Total Shipping Weight:
Synthetic Rope Model: 123.5 lbs (56 kg)
Steel Cable Model: 141.1 lbs (64 kg)
Box Dimensions: 26.0” x 18.1” x 10.6” (660mm x 460mm x 270mm)
