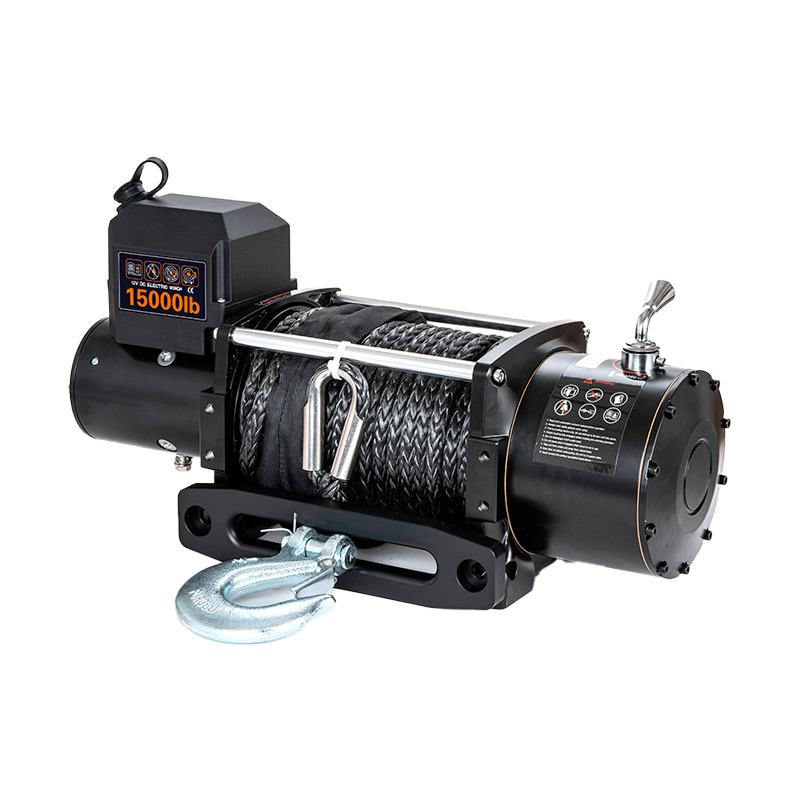

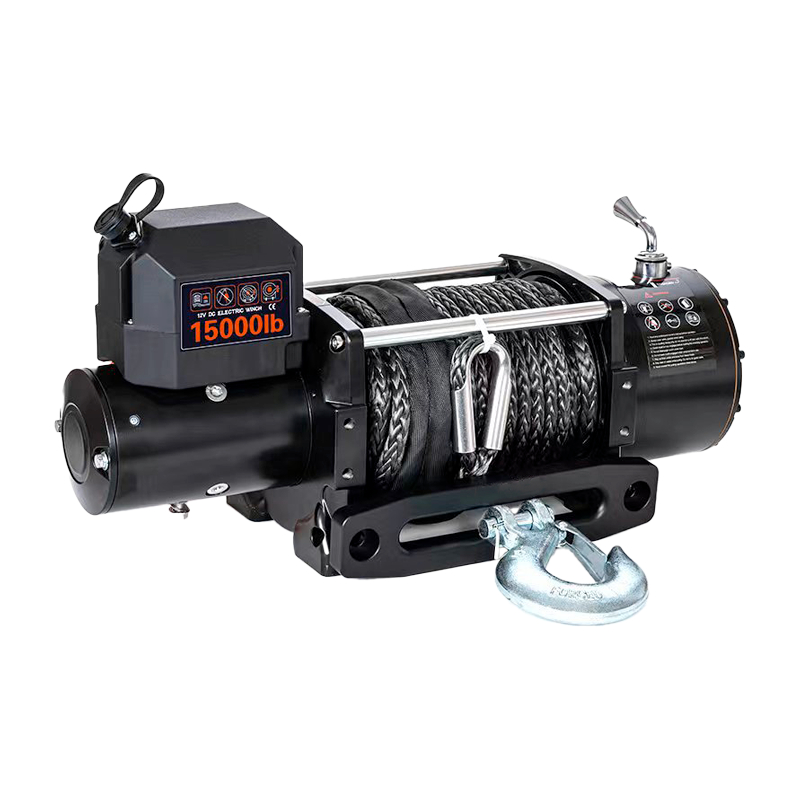

15000 lbs Winch

Designed for exceptional power and durability, the 15,000 lbs Winch is your go-to solution for heavy-duty recovery tasks. Whether you’re navigating rugged terrains or managing demanding rescues, this winch delivers unmatched performance and reliability.

Specifications:
Rated Line Pull: 15,000 lbs (6,804 kg) single-line
Motor: 12V DC waterproof series wound, 7.2HP
Gear System: 3-stage planetary gear for smooth performance
Gear Ratio: 364:1 for balanced power and speed
Brake: Automatic, 100% load-holding capacity
Clutch: 90° rotational engagement for convenience
Electrical Control: Sealed 500A contactor for durability
Control Options: Includes a wired 3-pin 12 ft (3.7m) controller and wireless remote
Rope Options:
Synthetic Rope: 11mm x 26m
Steel Cable: 11mm x 26m
Fairlead: Hawse (synthetic rope) or Roller (steel cable)
Additional Specifications:
Recommended Battery: Minimum 650 CCA for efficient operation
Battery Leads: 25mm², 6 ft (1.83m) length
Winch Dimensions: 23.1” x 8.5” x 10.1” (588mm x 215mm x 256mm)
Mounting Bolt Pattern: 10” x 4.5” (254mm x 114.3mm)
Shipping Information:
Winch Weight:
Synthetic Rope Model: 94.8 lbs (43 kg)
Steel Cable Model: 111.3 lbs (50.5 kg)
Total Shipping Weight:
Synthetic Rope Model: 99.2 lbs (45 kg)
Steel Cable Model: 115.7 lbs (52.5 kg)
Box Dimensions: 26.0” x 18.1” x 10.6” (660mm x 460mm x 270mm)
